PRS Sonzera 20 Combo Tube Guitar Amp

PRS Sonzera 20 Combo Tube Guitar Amp

General
Available Configurations
Combo
Channels
Gain & Clean
Electronics
Wattage
20
Tubes
Power Tubes
(2) 5881 or 6L6WGC-STR Short Bottle
Preamp Tubes
(4) 12AX7 / ECC83

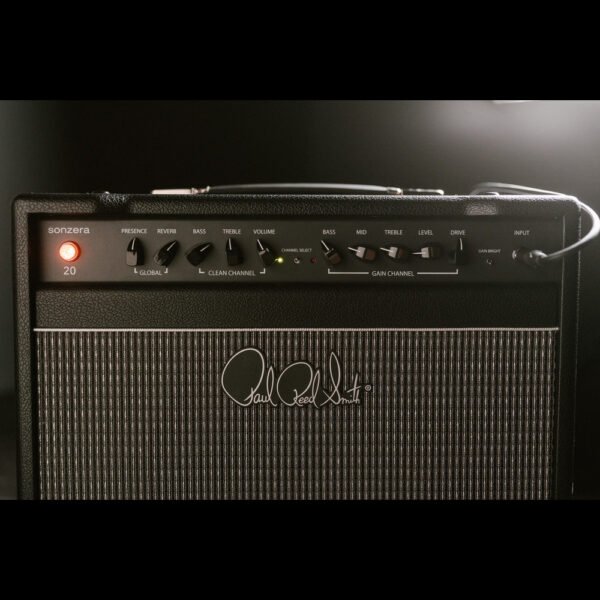

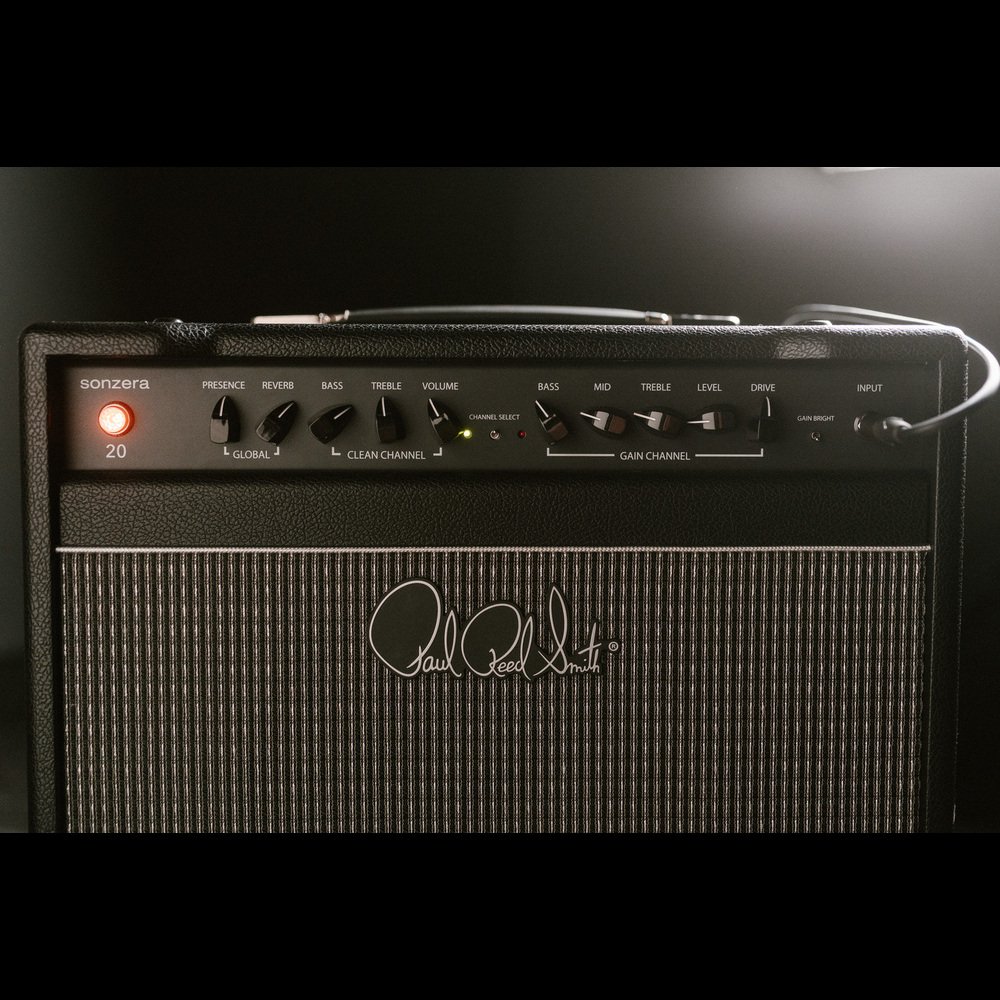

Front Panel Controls
Gain Channel
Bass, Middle, Treble, Level, Drive
Clean Channel
Bass, Treble, Volume

Global Controls
Channel Select Switch, Reverb, Presence

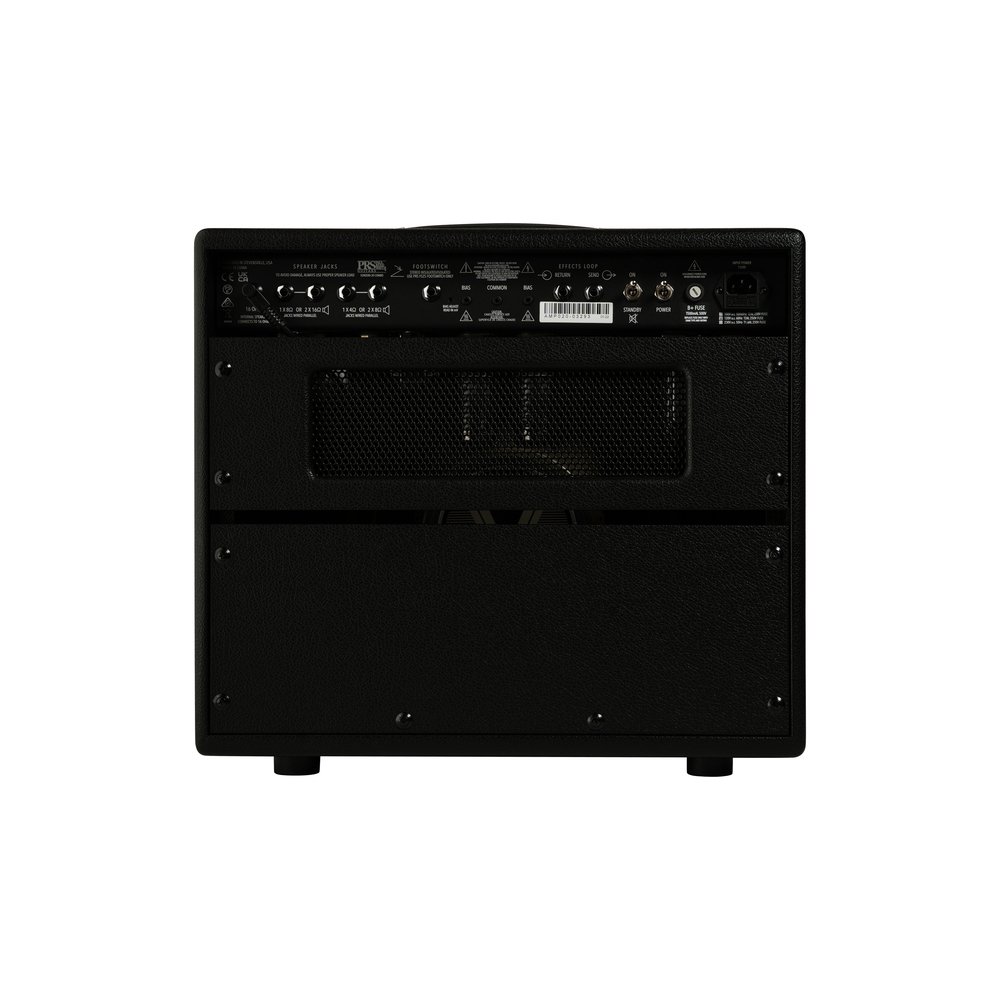

Back Panel Features
Fused Power Inlet (IEC)
Effects Loop
Loop Return, Loop Send
Extension Speaker Jacks
5
Ohm Switching
(2) 4 ohm & (2) 8 ohm parallel, (1) 16 ohm
Bias
Adjustable with Monitoring Jacks

Hardware
Cabinet Material / Construction
Plywood
Covering
Textured Black Vinyl
Grill Cloth
Salt and Pepper
Piping
Silver

Measurements
Amp Width
19.5" (49.53 cm)
Amp Depth
10.5" (26.67 cm)
Amp Height
18" (45.72 cm)
Amp Weight
42 lbs. (19.05 kg)

Included Accessories
2-Button Footswitch (Channel Gain/Clean, Reverb On/Off)
Preamp Tube Positions & Functions
V1
Common Input Gain Stage
V2
Gain Channel
V3
Reverb
V4
Phase Inverter
